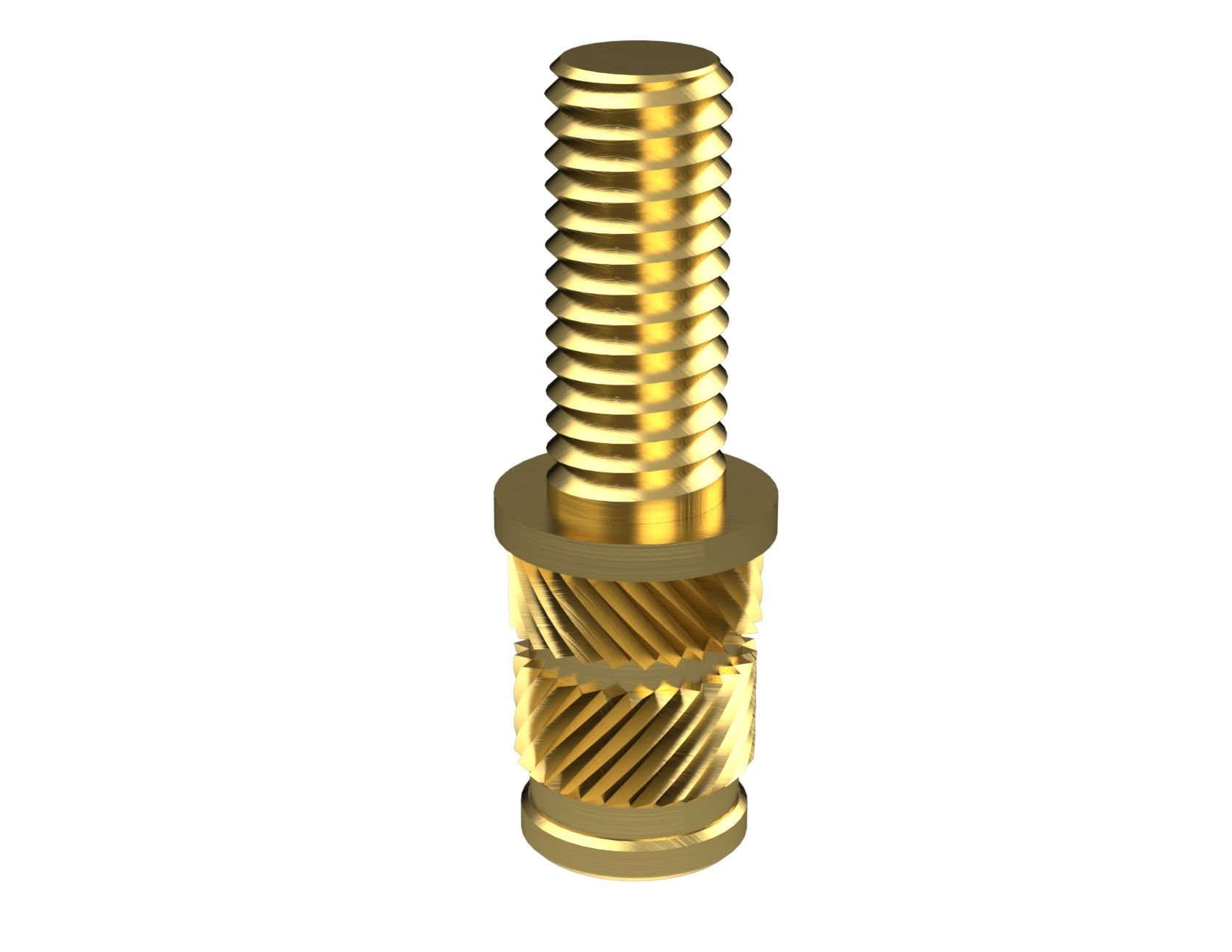

Heatstake / Ultrasonic Headed Stud

Series 20106 Type: HSS

The HSS Insonic Range of Inserts have the same features as the HS range butwith a male thread. They can be installed with ultrasonic or heat insertion machines in all thermo plastics. The unique opposing helix knurl provides exceptional resistance to torque loads and facilitates the flow of plastic into the two recessed grooves providing greater pullout loads than alternative designs.

Materials and Finishes:
Brass Self Colour (nickel plated on request)
303 Stainless Steel (code S) special order only check with sales dept.

To Specify Use: Series No / Part No / Length (eg 20106 HSS050L15  M5x15 long stud)

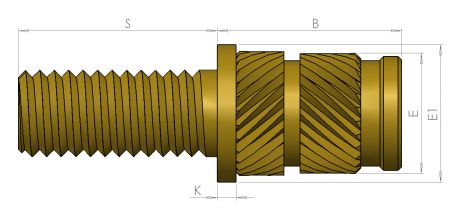

PART NO.THREAD AEXT. DIAM. EHEAD DIA. E1HEAD THICKN KINSERT LENGTH BSTUD LENGTH SHOLE DIA. L+0.1MIN WALL W
HSS020L_M2.03.604.800.604.606-163.22.0
HSS025L_M2.54.605.600.606.406-164.02.3
HSS030L_M3.04.605.600.606.406-164.02.3
HSS035L_M3.55.406.400.808.006-254.82.5
HSS040L_M4.06.307.200.809.006-255.62.5
HSS050L_M5.07.008.001.0010.506-256.42.7
HSS060L_M6.08.609.501.3014.006-258.03.0
HSS080L_M8.010.2011.001.3014.0010-259.63.5
