Expansion Type MV

Series 20110 Type: MV

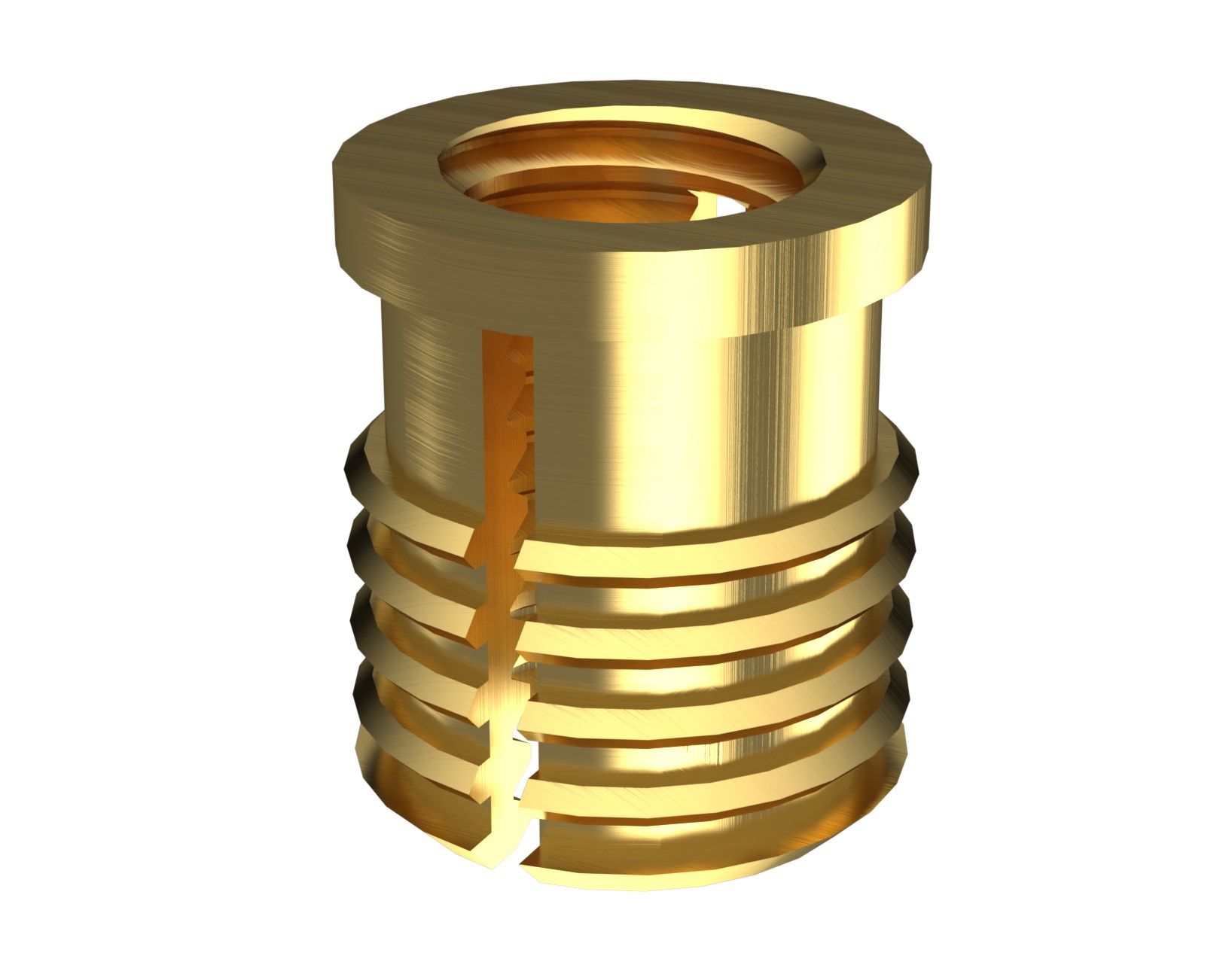

MV inserts are a press-in expansion insert. The slotted body closes when pushed into the boss and then expands when the thread is engaged allowing it to grip the boss. All slotted inserts have a prevailing torque feature making the resistant to loosening under vibration.

Material and Finish:- Brass Self Colour

To Specify Use: Series No / Part No (eg 20110 MV050H095)

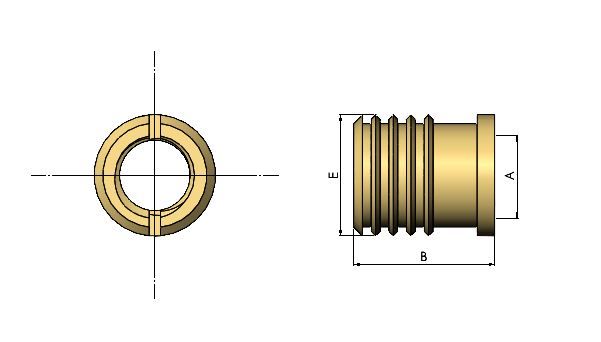

PART NO.THREAD AEXT. DIAM. ELENGTH BNO. OF VANESMIN WALL WHOLE SIZE L
MV020H040M2.03.454.0021.63.2
MV025H048M2.54.304.8032.04.0
MV030H048M3.04.304.8032.04.0
MV035H064M3.55.106.4032.44.8
MV040H080M4.05.908.0042.85.6
MV050H095M5.06.709.5053.26.4
MV060H127M6.08.3012.7054.08.0
MV080H127M8.09.9012.7054.89.5
