Thin Sheet Woodcert

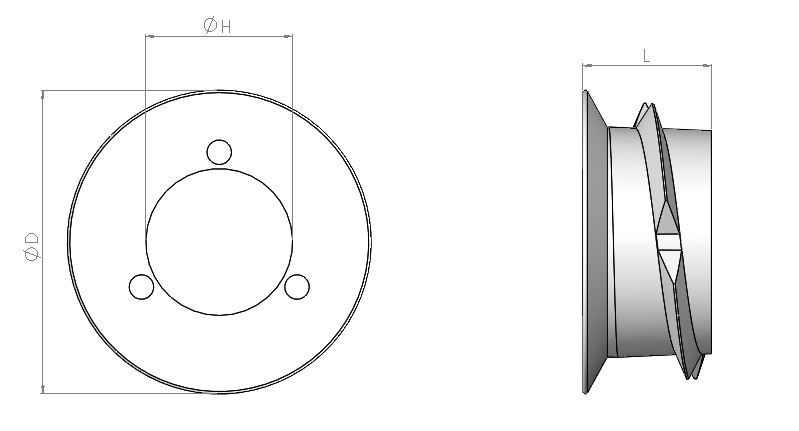

Series 20130 Type: DPW

The DPW Type Woodcert is a flanged insert for wood and composites. It has an oversized body to give higher torque loads in thin materials. The insert is part threaded to stop screws from breaking through the panel.

Material and Finish:-
Zamac zinc plated.

PART NO.THREADOVERALL LENGTHHOLE SIZELEAD DIAMHEAD DIAM
DPW060H07M6710.310.2516
DPW050H07M5710.310.2516
