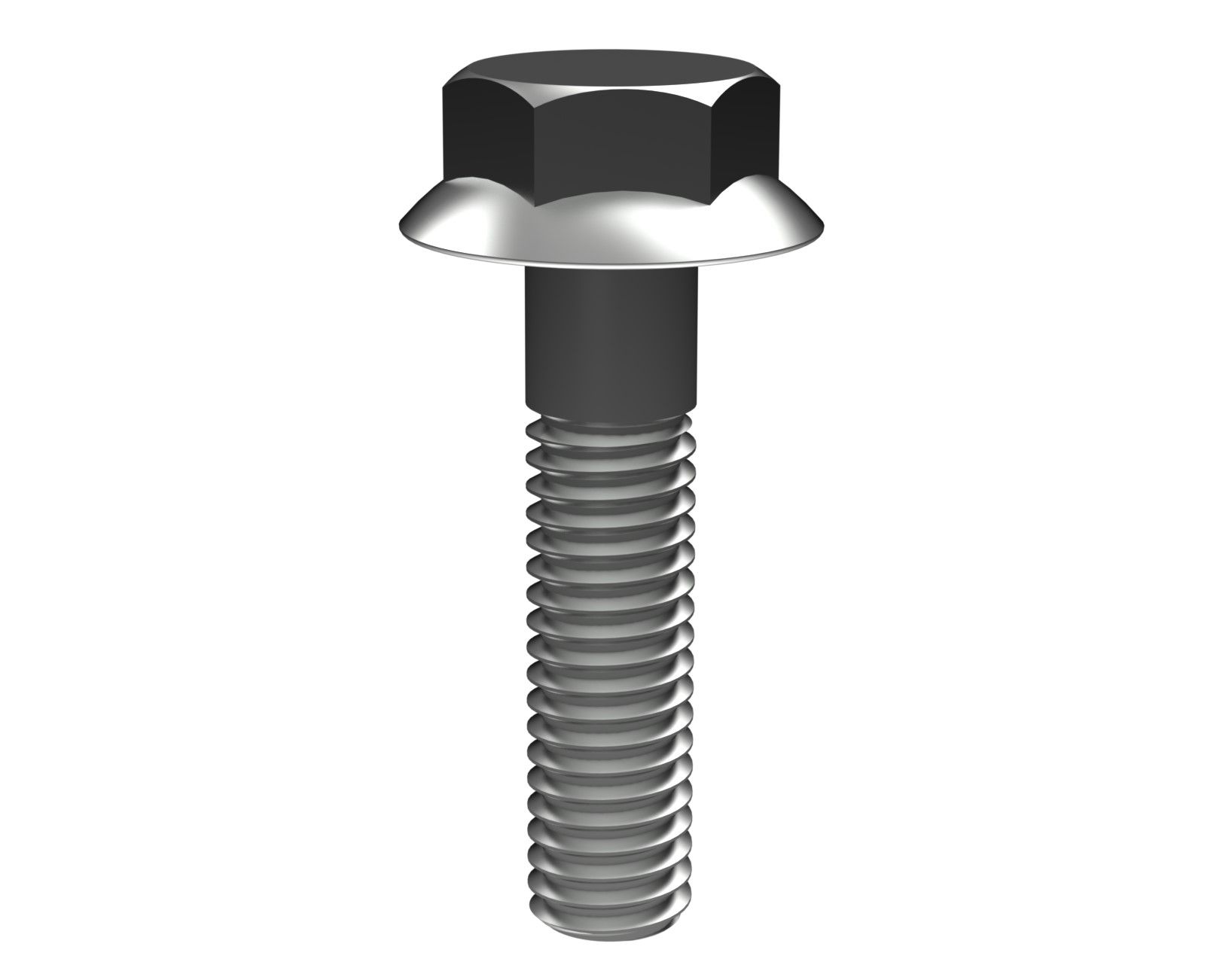

Non-Serrated Hex Flange Bolts Grade 8.8

Series 10105 Type: - DIN 6921, 8.8

Material/Finish/Finish Code:

Steel - Zinc Plated - 60

Part Number ID:

Part No/Thread Length/grade/Finish Code
Eg: 10105 FB0616 60: Flange Bolt M6 x 16 Zinc Clear 8.8

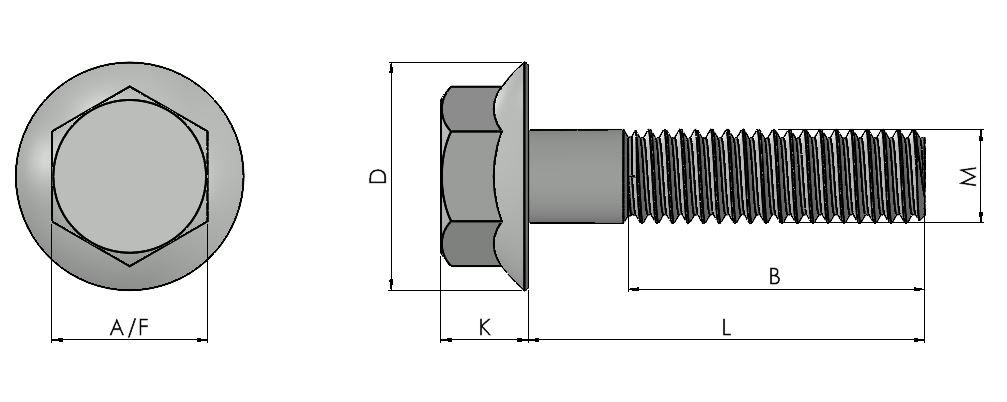

PART NO.THREADKB WHEN (L>B)A/FD
10105 FB05**M55.4016.008.0011.80
10105 FB06**M66.6018.0010.0014.20
10105 FB08**M88.1022.0013.0018.00
10105 FB10**M109.2026.0015.0022.30
10105 FB12**M1211.5030.0016.0026.60
10105 FB16**M1614.4038.0021.0035.00

Part Lengths

Legend
Usually Available from Stock
Special Order Only
Not Available

Please use (click) the dots within the table below to select samples to be added to your sample list.

Please refine your sample request by selecting a length from the following table; your selected sample has been highlighted:

THREAD/LENGTH1012162025303540455060
M5
M6
M8
M10
M12
M16
