Hex Set Screws Grade 8.8

Series 10102 Type: - DIN 933, 8.8

Material/Finish/Finish Code:

Steel 8.8- Self Colour - 00
Steel 8.8 - Zinc Plated - 60
Stainless Steel A2 - Self Colour - SS
Stainless Steel A4 - Self Colour - A4

Part Number ID:

Part No/Thread Length/Finish Code
Eg: 10102 M0614 60: M6 x 14 Zinc Clear

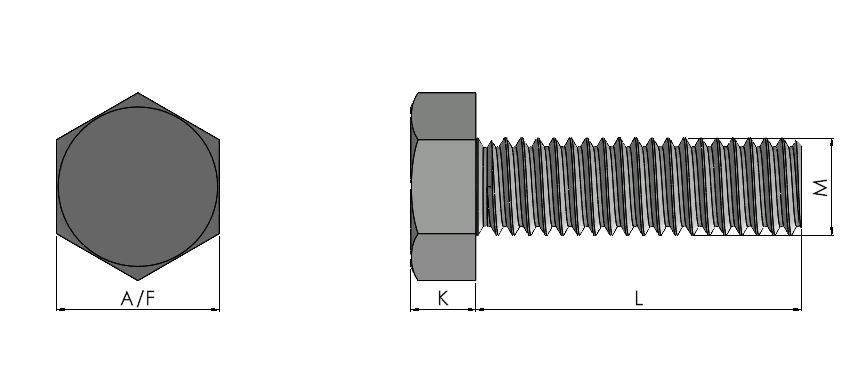

PART NO.THREADKA/F
10102 M03**M32.005.50
10102 M04**M42.807.00
10102 M05**M53.508.00
10102 M06**M64.0010.00
10102 M07**M74.8011.00
10102 M08**M85.3013.00
10102 M10**M106.4017.00
10102 M12**M127.5019.00
10102 M14**M148.8022.00
10102 M16**M1610.0024.00
10102 M18**M1811.5027.00
10102 M20**M2012.5030.00
10102 M22**M2214.0032.00
10102 M24**M2415.0036.00
10102 M27**M2717.0041.00
10102 M30**M3018.7046.00

Part Lengths

Legend
Usually Available from Stock
Special Order Only
Not Available

Please use (click) the dots within the table below to select samples to be added to your sample list.

Please refine your sample request by selecting a length from the following table; your selected sample has been highlighted:

THREAD/LENGTH58101214161820222530354045505560657075808590100110120130140150160170180200
M3
M4
M5
M6
M7
M8
M10
M12
M14
M16
M18
M20
M22
M24
M27
M30
Request Information:
About Series: Series 10102 Type: - DIN 933, 8.8
