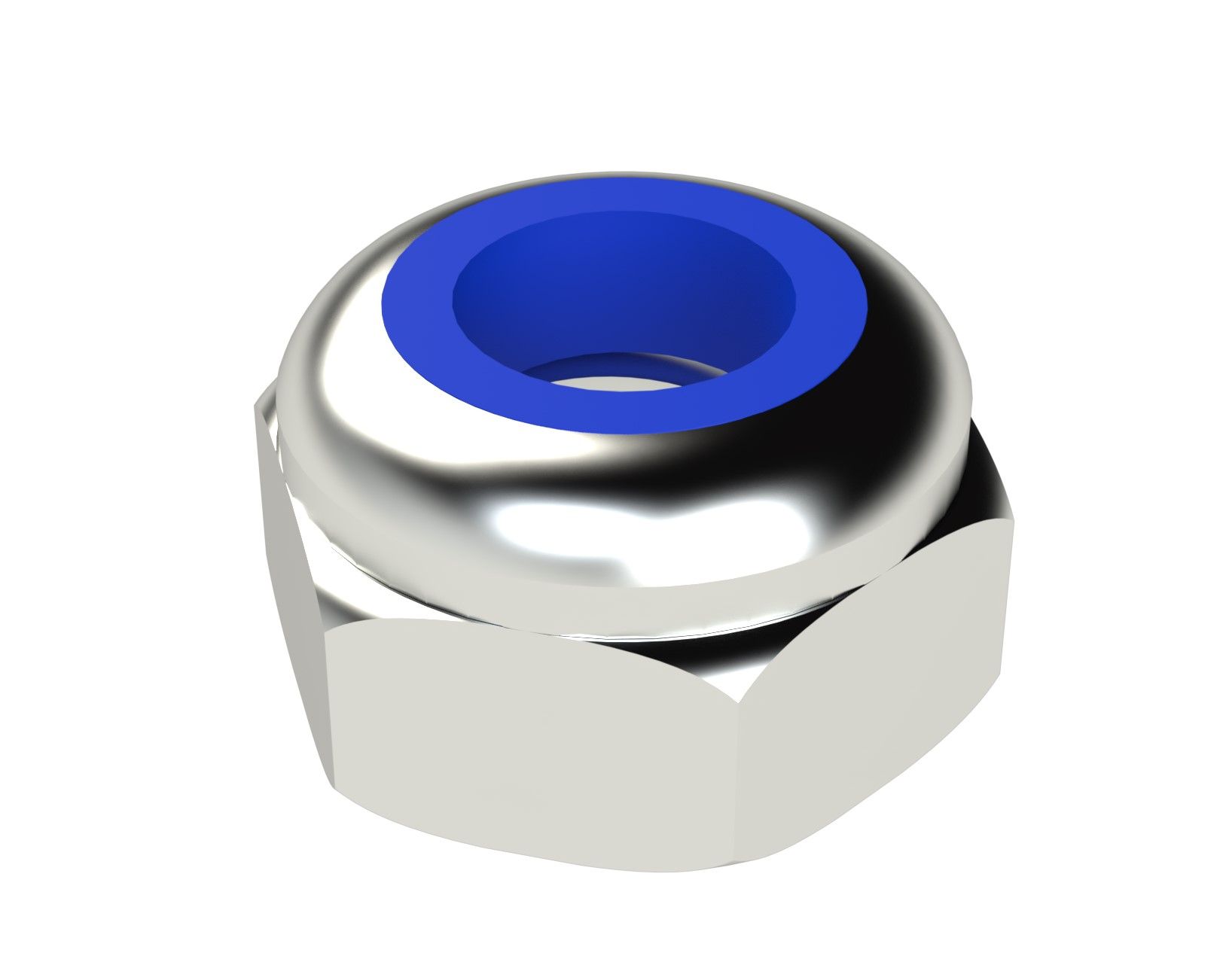

Hexagon Nylon Insert Thin Lock Nut

Series 10405 Type: - DIN 985

10405

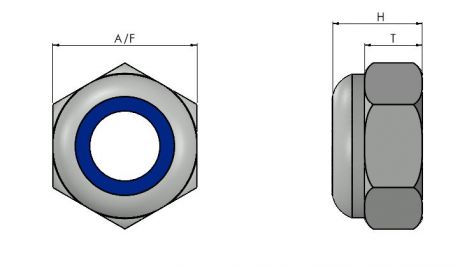

10405 DWG

Material/Finish/Code:

Grade 8 Steel - Zinc Clear - 60
Stainless Steel A2 - Self Colour - SS
Stainless Steel A4 -Self Colour - A4

Part Number ID:

Part No/Thread/Finish
Eg: 10405 M2 60: M2 Nylock Nut Thin Zinc Clear

Click here to view this page as a PDF document.
PART NO.THREAD (D)A/FHT
10405 M2M24.52.51.6
10405 M2.5M2.553.82
10405 M3M35.542.4
10405 M3.5M3.564.52.6
10405 M4M4752.9
10405 M5M5853.2
10405 M6M61064
10405 M7M7117.54.7
10405 M8M81385.5
10405 M10M1017106.5
10405 M12M1219128
10405 M14M1422149.5
10405 M16M16241610.5
10405 M18M182718.513
10405 M20M20302014
