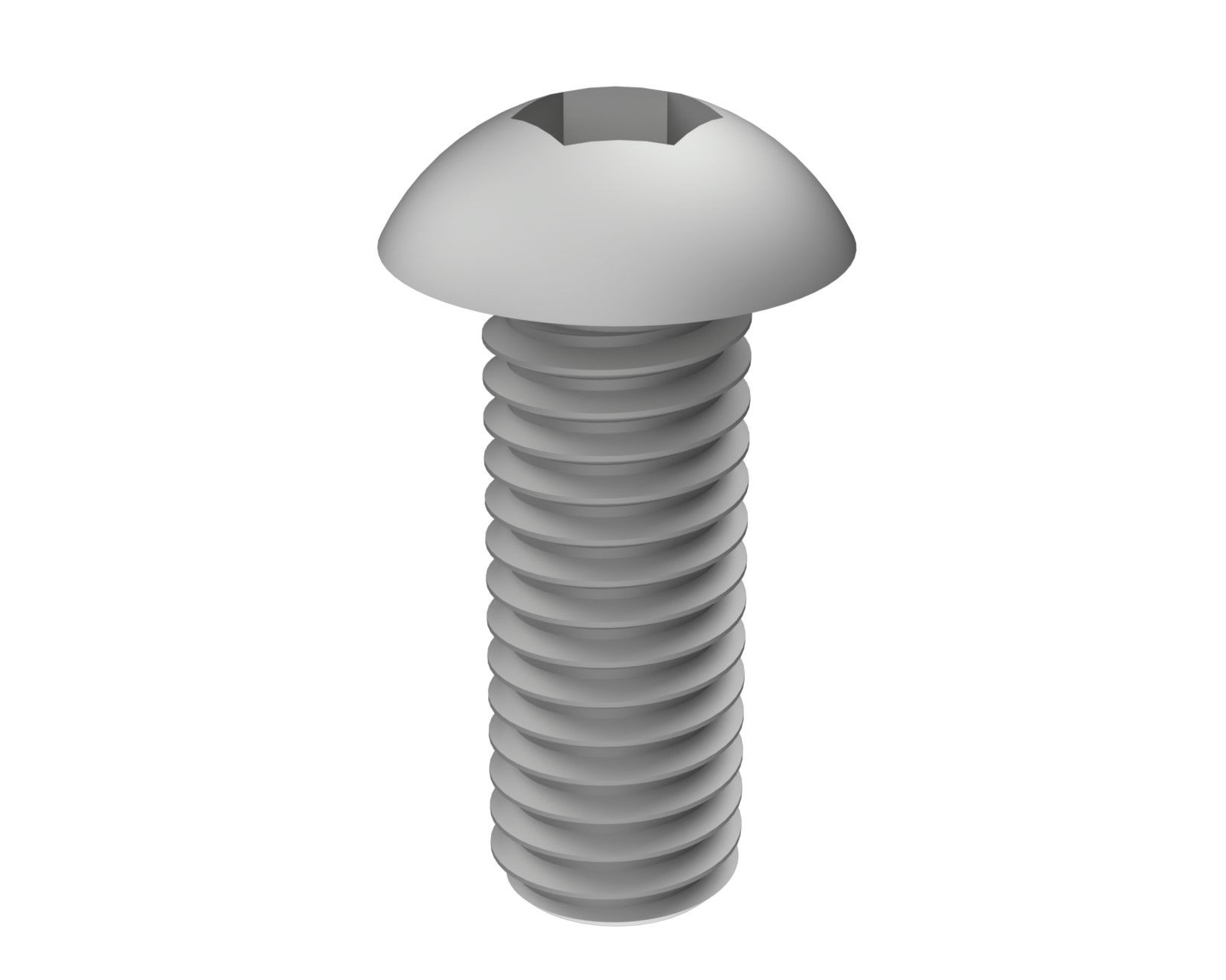

Hexagon Socket Button Head 10.9

Series 11704 Type: - ISO 7380-1

Material/Finish/Finish Code:

Steel - Self Colour - 00
Steel - Zinc Plated - 60
Stainless Steel A2 - Self Colour - SS
Stainless Steel A4 - Self Colour - A4

Part Number ID:

Part No/Thread Length/grade/Finish Code
Eg: 11704 M0616 60: M6 x 16 Zinc Clear 10.9

PART NO.THREADKB WHEN (L>B)DA/F
11704 M03**M31.6518.005.702.00
11704 M04**M42.2020.007.602.50
11704 M05**M52.7522.009.503.00
11704 M06**M63.3024.0010.504.00
11704 M08**M84.4028.0014.005.00
11704 M10**M105.5032.0017.506.00
11704 M12**M126.6036.0021.008.00

Part Lengths

Legend
Usually Available from Stock
Special Order Only
Not Available

Please use (click) the dots within the table below to select samples to be added to your sample list.

Please refine your sample request by selecting a length from the following table; your selected sample has been highlighted:

THREAD/LENGTH4568101214161820253035404550556065708090
M3
M4
M5
M6
M8
M10
M12
