Broaching Studs For PCB

Series 30313 Type: BS

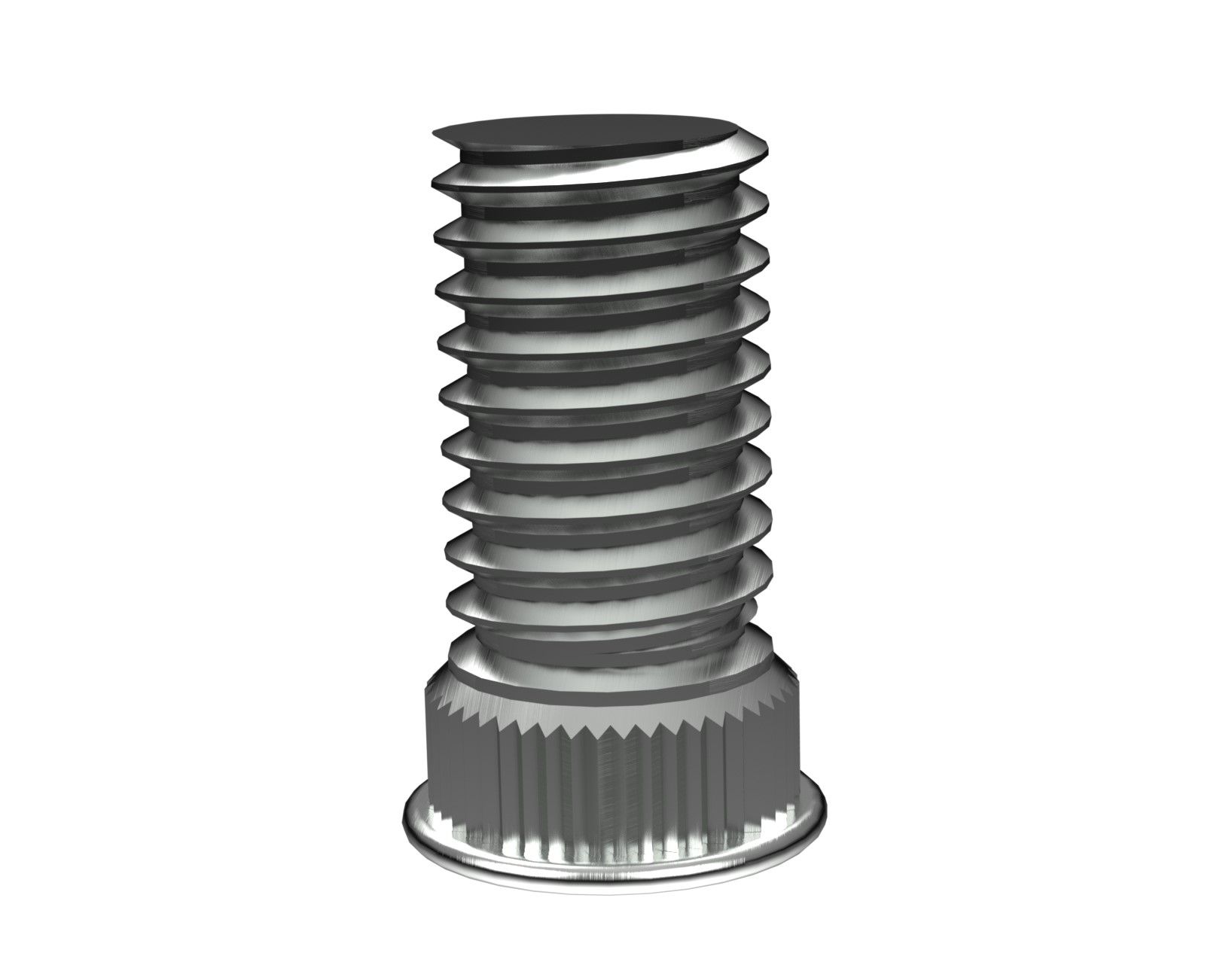

Broaching Standoffs are for use in Circuit boards or thin sheet materials softer than RB-65. The broaching action during installation creates excellenty retention in the board giving a secure mounting for components & hardware. Various lengths are available so boards can be stacked at the required distance. Non threaded versions are also available if prefered.

Materials & Finishes
Phosphor Bronze Electro Tin (Code ET)
303 Stainless Steel (Code SS)

To Specify use Series No / Part No. / Length / Finish Code (eg 30313 BSM312 ET)

Length Options

Click here to view this page as a PDF document.

Part Lengths

Legend
•	Usually Available from Stock
•	Special Order Only
•	Not Available

Please refine your sample request by selecting a length from the following table; your selected sample has been highlighted:

PART	6	8	10	12	15	18
BS M3	•	•	•	•	•	•
BS M4	•	•	•	•	•	•
BS M5	•	•	•	•	•	•

Request Information:

About Series: Series 30313 Type: BS

PART NO.	THREAD M	SUITABLE SHEET	HEAD DIAM. D	HOLE SIZE	MAX CLEARANCE	MIN DIM. X	ANVIL HOLE	MAX TORQUE NM.
BS M3	M3	1.6	4.58	3.0	3.7	3.8	3.1	0.45
BS M4	M4	1.6	5.74	4.2	4.8	5.1	4.1	1.60
BS M5	M5	1.6	6.60	5.0	5.8	5.3	5.1	2.10
BS M3	M3	1.6	4.58	3.0	3.7	3.8	3.1	0.45
BS M4	M4	1.6	5.74	4.2	4.8	5.1	4.1	1.60
BS M5	M5	1.6	6.60	5.0	5.8	5.3	5.1	2.10
