Cable Tie Bases Two Way

Series 50211 Type: TB2

TB2 Natural Nylon 66 Cable Tie bases are two way tie bases either self adhesive or screw down, used to secure cable ties and therefore cables providing a durable method of routing and securing wire bundles cables or pipes. Their low profile height allows use in the most confined of spaces. R.I.Na. Approval no. 5/206/85.

Materials & Colours:-
Nylon 66 Black or Natural

To Specify Use: Series No / Part No (eg 50211 5467)

Click here to view this page as a PDF document.

Request Information:

About Series: Series 50211 Type: TB2

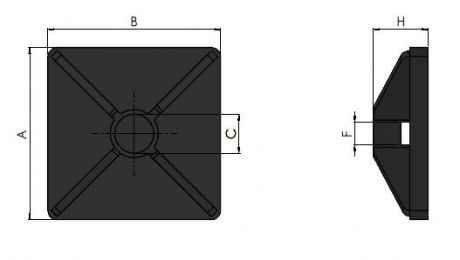

PART NO.	COLOUR	MAX TIE WIDTH	DIM. A	DIM. B	DIM. C	DIM. F	DIM. H	ADHESIVE/ SCREW	TYPE
5469	BL	3.6	19.0	19.0	4.3	4.0	6.0	AD	2 WAY
5475	BL	4.8	26.5	26.5	4.3	6.0	8.0	AD	2 WAY
5468	BL	3.6	19.0	19.0	4.3	4.0	6.0	SC	2 WAY
5474	BL	4.8	26.5	26.5	4.3	6.0	8.0	SC	2 WAY
5467	NAT	3.6	19.0	19.0	4.3	4.0	6.0	AD	2 WAY
5473	NAT	4.8	26.5	26.5	4.3	6.0	8.0	AD	2 WAY
5466	NAT	3.6	19.0	19.0	4.3	4.0	6.0	SC	2 WAY
5472	NAT	4.8	26.5	26.5	4.3	6.0	8.0	SC	2 WAY
