Single Edge Clips 1

Series 40501 Type: EC1

Edge Clips have nine forms to cater for variations in the applications they are required to fit. These quick fit versatile fasteners are available in a wide selection of panel ranges to satisfy any conceivable application.

Material: Spring Steel       Finish: Black Phosphate or Trivalent Zinc

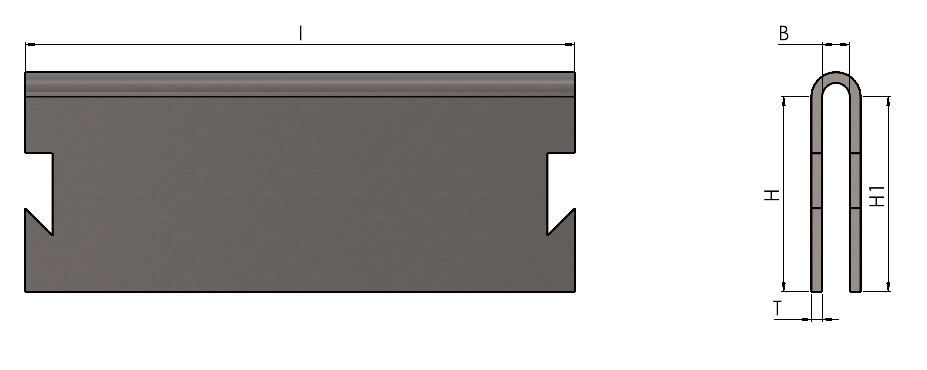

PART NO.PANEL RANGEDIM. IDIM BDIM HDIM H1TFORM
0425870.7 - 0.8201.07.17.10.42
0515650.7 - 1.2131.68.88.80.41
0518600.7 - 1.5132.08.68.60.41
0515640.7 - 1.5132.49.29.20.42
0418470.75 - 2.0132.04.84.80.331
0515460.8 - 1.3131.68.88.80.41
0414541.0 - 2.0202.813.413.40.62
0517831.0 - 1.5132.08.58.50.41
0515101.0 - 1.5132.08.58.50.41
0547121.0 - 2.5102.59.49.40.41
0516781.4 - 2.0132.48.38.30.41
0517341.4 - 2.0132.48.58.50.41
0517891.5132.09.59.50.42
0419201.5 - 1.75132.156.06.00.32
0526671.5 - 2.2132.56.66.60.41
0430301.5 - 3.25133.56.06.00.31
0430881.6 - 2.2132.58.18.10.41
0541341.6 - 2.5132.714.614.60.51
0520811.6 - 2.5132.715.015.00.51
0429821.7 - 2.082.06.06.00.253
0529441.7 - 2.0132.57.07.00.41
0514551.7 - 2.2132.58.58.50.41
0516571.7 - 2.414.32.88.88.80.61
0421001.75 - 2.0152.214.58.50.42
0420721.75 - 2.0152.220.58.50.42
0428341.75 - 2.25132.58.78.70.31
0436701.8 - 2.082.05.855.850.253
0514521.8 - 2.2132.58.38.30.41
0519171.8 - 2.8133.216.716.70.51
0528282.0 - 2.2202.312.012.00.52
0518612.0 - 2.7133.07.67.60.41
0515772.0 - 2.8133.28.38.30.42
0527522.2 - 2.5203.212.012.00.62
0517412.2 - 2.6133.17.07.00.41
0545322.2 - 2.6132.87.47.40.41
0421582.5202.815.015.00.62
0516522.5 - 2.8133.29.19.10.41
0418482.5 - 3.0133.04.04.00.31
0427182.75 - 3.25133.56.06.00.31
0542392.75 - 3.5504.015.615.60.13
0516273.0134.08.68.60.41
0521013.0 - 3.5503.216.016.00.13
0440933.0 - 3.6113.519.013.50.71
0428993.5 - 4.02010.020.020.00.52
0431263.5 - 4.2204.212.612.60.41
0517804.0 - 5.0134.59.19.10.42
0533284.25 - 4.7512.75.28.28.20.51
0422754.4 - 5.5255.012.012.00.52
0517514.5 - 5.0136.08.68.60.452
0434014.5 - 5.5135.68.58.50.31
0535104.5 - 5.0206.014.514.50.51
0429274.7 - 5.1135.05.05.00.31
0440295.5865.914.010.50.41
0440805.51265.918.510.50.41
0431315.51385.918.510.50.41
0420035.5 - 6.0206.76.76.70.31
0533296.7 - 8.112.78.39.559.550.451
0422046.0 - 7.0157.011.011.00.51
0419189.0 - 9.5159.759.49.40.61
04391718.01520.513.513.50.61
04214621.01521.211.911.90.61
04216332.01233.011.511.50.51
