Hexagon Moldcert

Series 20109 Type: HX

HXB and HXT Moldcerts are suitable for moulding into all types of plastic material during the moulding cycle. They are available with blind or through threads (HXB or HXT). The hexagon body gives very high torque resistance even in soft materials.

Specials also available subject to MOQ and leadtimes.

Material and Finish:
Brass Self Colour
Stainless Steel 303 (code SS) Special Order Only

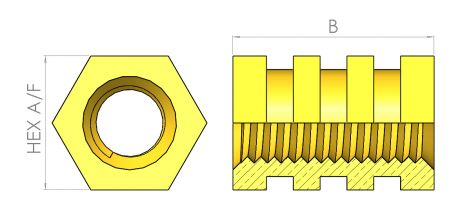

PART NO.THREAD MHEX. SIZE A/FOVERALL LENGTHTHREAD DEPTH
HX_030905M35MM8.5MM6MM
HX_040906M46MM8.5MM6MM
HX_041506M46MM15MM10MM
HX_050908M58MM8.5MM6MM
HX_051908M58MM19MM15MM
HX_061910M610MM19MM15MM
HX_061510M610MM15MM11MM
HX_081912M812MM19MM15MM
HX_101914M1014MM19MM15MM
HX_121914M1214MM19MM15MM
HX_141916M1416MM19MM15MM
HX_161918M1618MM19MM15MM
